Introduction:
HT Hydraulics Since 1987 Hydraulic Hose Fitting -Two Pieces Fittings
SAE Flange 6000PSI Code 62 ISO 12151-3-SAE J516
PRODUCT INTRODUCTION

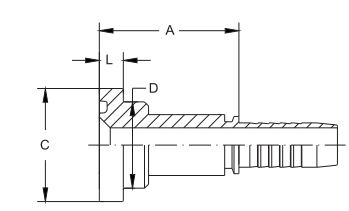

| H87611 | HT Hydraulics Since 1987 Hydraulic Hose Fitting -Two Pieces Fittings | ||||||
| SAE Flange 6000PSI Code 62 ISO 12151-3-SAE J516 | |||||||
 | Part No. | Thread | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | L | |||
| H87611-08-08 | 1/2" | 13 | 08 | 47 | 31.7 | 7.75 | |
| H87611-12-10 | 3/4' | 16 | 10 | 51 | 41.3 | 8.76 | |
| H87611-12-12 | 3/4" | 19 | 12 | 51 | 41.3 | 8.76 | |
| H87611-16-12 | 1" | 19 | 12 | 56 | 47.6 | 9.53 | |
| H87611-16-16 | 1" | 25 | 16 | 57 | 47.6 | 9.53 | |
| H87611-16-20 | 1" | 32 | 20 | 58 | 47.6 | 9.53 | |
| H87611-20-16 | 1.1/4" | 25 | 16 | 65 | 54 | 10.29 | |
| H87611-20-20 | 1.1/4" | 32 | 20 | 66 | 54 | 10.29 | |
| H87611-24-20 | 1.1/2" | 32 | 20 | 75 | 63.5 | 12.57 | |
| H87611-24-24 | 1.1/2" | 38 | 24 | 75 | 63.5 | 12.57 | |
| H87611-32-24 | 2" | 38 | 24 | 85 | 79.4 | 12.57 | |
| H87611-32-32 | 2" | 51 | 32 | 85 | 79.4 | 12.57 | |
| Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is H87612-XX-XX. | |||||||
Hydraulic Hose Flange are widely used on hydraulic connection, power and control system of construction machinery, mining machinery,agriculture machinery, metallurgical equipment, wind power and etc.
