HT Hydraulics Since 1987 - Hydraulic Hose Fitting
ORFS Female Flat Seat Double Hexagon ISO 12151-1-SAE J516
PRODUCT INTRODUCTION

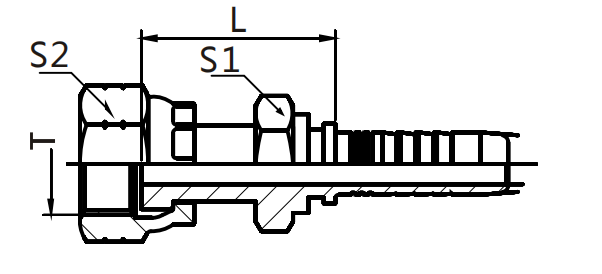

| H24211D | HT Hydraulics Since 1987 - Hydraulic Hose Fitting | ||||||
| ORFS Female Flat Seat Double Hexagon ISO 12151-1-SAE J516 | |||||||
 | Part No. | Thread | HOSE BORE | DIMENSIONS | |||
| DN | DASH | L | S1 | S2 | |||
| H24211D-04-04 | 9/16*18 | 6 | 04 | 27.5 | 14 | 17 | |
| H24211D-06-04 | 1 1/16*16 | 6 | 04 | 30.5 | 19 | 22 | |
| H24211D-06-05 | 1 1/16*16 | 8 | 05 | 30.5 | 19 | 22 | |
| H24211D-06-06 | 1 1/16*16 | 10 | 06 | 30.5 | 19 | 22 | |
| H24211D-08-06 | 1 3/16*16 | 10 | 06 | 33 | 22 | 24 | |
| H24211D-08-06 | 1 3/16*16 | 13 | 08 | 33.5 | 22 | 24 | |
| H24211D-08-10 | 1 3/16*16 | 16 | 10 | 34.5 | 24 | 24 | |
| H24211D-10-08 | 1*14 | 13 | 08 | 40 | 27 | 30 | |
| H24211D-10-10 | 1*14 | 16 | 10 | 41 | 27 | 30 | |
| H24211D-12-08 | 1 3/16*12 | 13 | 08 | 31 | 36 | 36 | |
| H24211D-12-10 | 1 3/16*12 | 16 | 10 | 32 | 36 | 36 | |
| H24211D-12-12 | 1 3/16*12 | 19 | 12 | 35 | 36 | 36 | |
| H24211D-16-16 | 1 7/16*12 | 25 | 16 | 35 | 41 | 41 | |
| H24211D-20-16 | 1 11/16*12 | 25 | 16 | 35 | 50 | 50 | |
| H24211D-20-20 | 1 11/16*12 | 32 | 20 | 40 | 50 | 50 | |
| H24211D-24-20 | 2*12 | 32 | 20 | 36.5 | 60 | 60 | |
| H24211D-24-24 | 2*12 | 38 | 24 | 36.5 | 60 | 60 | |
| Note: 1. For use with braid hoses. 2. if use with spiral hoses, hose fitting series no. is H24212D-XX-XX | |||||||
Hydraulic Hose Fitting are widely used on hydraulic connection, power and control system of construction machinery, mining machinery,agriculture machinery, metallurgical equipment, wind power and etc.
