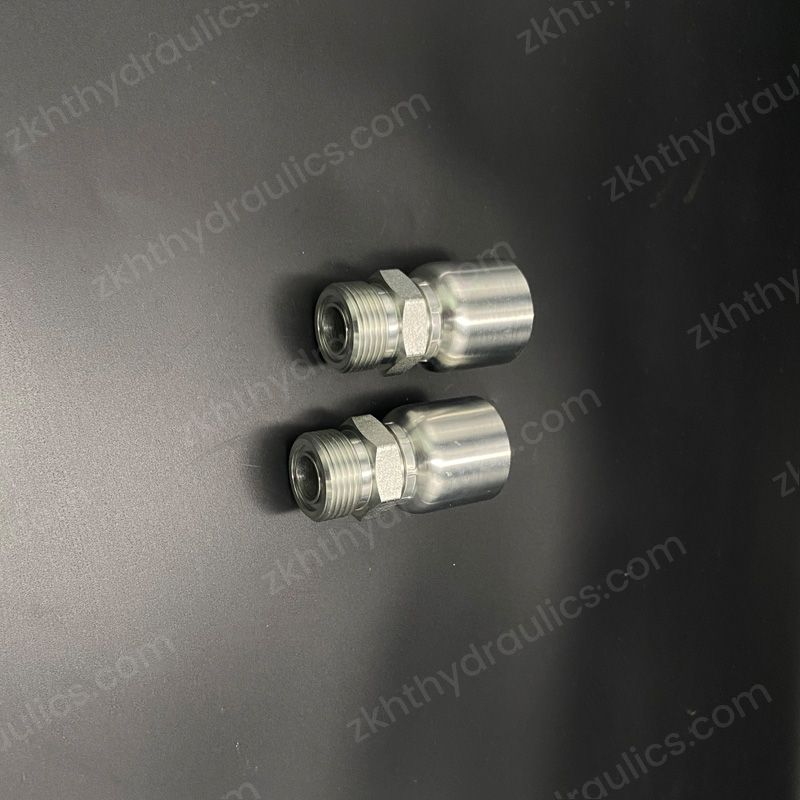

Hydraulic Hose Fitting ORFS MALE O-Ring Seal ISO 12151-1-SAE J1453 14211RW

Introduction:

HT Hydraulics Since 1987 Hydraulic Hose Fitting - One Piece Fittings

ORFS MALE O-Ring Seal ISO 12151-1-SAE J1453

Inquire Now Next Product

PRODUCT INTRODUCTION

H14211-RW		HT Hydraulics Since 1987 Hydraulic Hose Fitting - One Piece Fittings
H14211-RW		ORFS MALE O-Ring Seal ISO 12151-1-SAE J1453

	代号	螺纹T	软管HOSE BORE		尺寸DIMENSIONS
	Part No.	Thread	公称内径DN	标号DASH	A	B	H
	H14211-04-04RW	9/16*18	6	4	46	22	17
	H14211-06-04RW	11/16*16	6	4	48	24	19
	H14211-06-05RW	11/16*16	8	5	50	26	19
	H14211-06-06RW	11/16*16	10	6	47	24	19
	H14211-08-06RW	13/16"*16	10	6	50	27	22
	H14211-08-08RW	13/16"*16	12	8	51	27	22
	H14211-10-08RW	1"*14	12	8	55	32	27
	H14211-10-10RW	1"*14	16	10	57	32	27
	H14211-12-10RW	1.3/16"*12	16	10	59	34	32
	H14211-12-12RW	1.3/16"*12	20	12	61	35	32
	H14211-16-12RW	1.7/16"*12	20	12	64	38	41
	H14211-16-16RW	1.7/16"*12	25	16	67	37	41
	H14211-20-16RW	1.11/16"*12	25	16	66	36	46
	H14211-20-20RW	1.11/16"*12	32	20	85	37	46
	H14211-24-20RW	2"*12	32	20	87	40	55
	注：1.表中代号用于编织软管。2.如需用于缠绕软管代号改为 H14212-XX-XXRW Note:1.For use with braided hoses. 2.If use with sprial hoses,hose fitting series number is H14212-XX-XXRW

Product Appliaction

Hydraulic Hose Fittings are widely used on hydraulic connection, power and control system of construction machinery, mining machinery,agriculture machinery, metallurgical equipment, wind power and etc.

●Industrial Machinery: Enhancing the performance and reliability of hydraulic systems in manufacturing and industrial settings.

●Construction Equipment: Providing durable connections for hydraulic systems in heavy machinery and construction equipment.

●Agricultural Equipment: Ensuring efficient and reliable operation of hydraulic systems in farming and agricultural machinery.

●Automotive Industry: Supporting hydraulic systems in various automotive applications, ensuring safety and performance.
