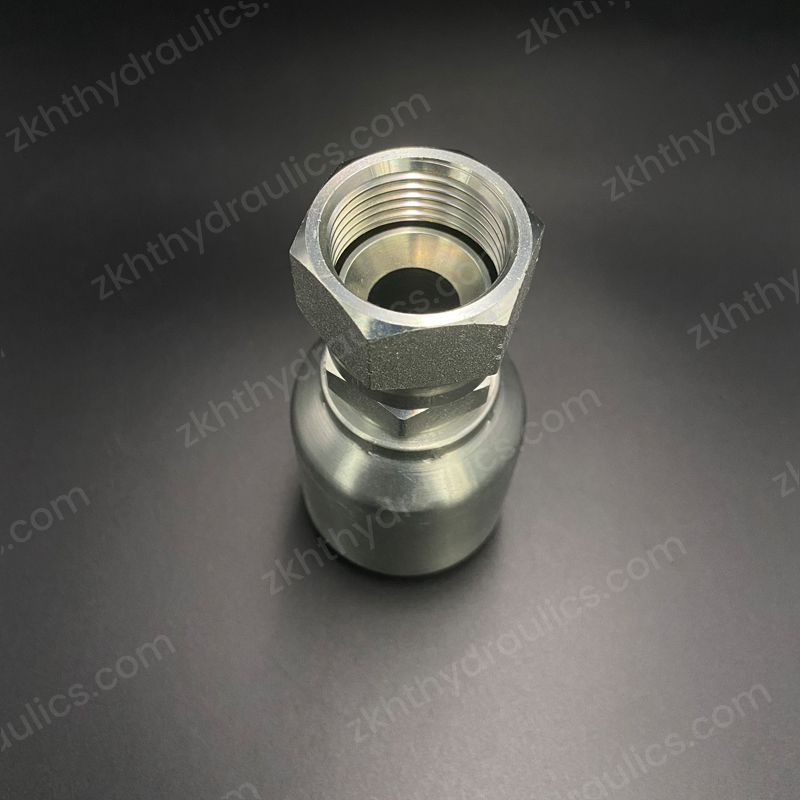

HT Hydraulics Since 1987 Hydraulic Hose Fitting -One Piece Fittings
JIC Female 74° Cone Seat Iso 12151-5 Double Hexagon SAE J514
PRODUCT INTRODUCTION
| H26711D-RW | HT Hydraulics Since 1987 Hydraulic Hose Fitting -One Piece Fittings | ||||||
| H26711D-SM | JIC Female 74° Cone Seat Iso 12151-5 Double Hexagon SAE J514 | ||||||
 | Part No. | Thread | HOSE BORE | DIMENSIONS | |||
| DN | DASH | L | S1 | S2 | |||
| H26711D-04-04RW | 7/16''*20 | 6 | 04 | 20 | 14 | 14 | |
| H26711D-05-04RW | 1/2''*20 | 6 | 04 | 20.5 | 17 | 17 | |
| H26711D-06-04RW | 9/16''*18 | 6 | 04 | 21 | 19 | 19 | |
| H26711D-06-06RW | 9/16''*18 | 10 | 06 | 21 | 19 | 19 | |
| H26711D-08-06RW | 3/4''*16 | 10 | 06 | 25 | 24 | 22 | |
| H26711D-08-08RW | 3/4''*16 | 13 | 08 | 24.5 | 24 | 22 | |
| H26711D-08-10RW | 3/4''*16 | 16 | 10 | 25.5 | 24 | 22 | |
| H26711D-10-08RW | 7/8''*14 | 13 | 08 | 28 | 27 | 27 | |
| H26711D-10-10RW | 7/8''*14 | 16 | 10 | 29 | 27 | 27 | |
| H26711D-12-12RW | 1.1/6''*12 | 19 | 12 | 31.5 | 32 | 32 | |
| H26711D-16-12RW | 1.5/6''*12 | 19 | 12 | 33.5 | 41 | 41 | |
| H26711D-16-16RW | 1.5/6''*12 | 25 | 16 | 34.5 | 41 | 41 | |
| H26711D-16-20RW | 1.5/6''*12 | 32 | 20 | 36.5 | 41 | 41 | |
| H26711D-20-20RW | 1.5/8''*12 | 32 | 20 | 39 | 50 | 50 | |
| H26711D-04-04SM | 7/16''*20 | 6 | 04 | 20 | 12 | 14 | |
| H26711D-05-04SM | 1/2''*20 | 6 | 04 | 20.5 | 12 | 17 | |
| H26711D-06-04SM | 9/16''*18 | 6 | 04 | 21 | 14 | 19 | |
| H26711D-06-06SM | 9/16''*18 | 10 | 06 | 21 | 17 | 19 | |
| H26711D-08-06SM | 3/4''*16 | 10 | 06 | 25 | 19 | 22 | |
| H26711D-08-08SM | 3/4''*16 | 13 | 08 | 24.5 | 22 | 22 | |
| H26711D-08-10SM | 3/4''*16 | 16 | 10 | 25.5 | 22 | 22 | |
| H26711D-10-08SM | 7/8''*14 | 13 | 08 | 24 | 22 | 27 | |
| H26711D-10-10SM | 7/8''*14 | 16 | 10 | 27 | 22 | 27 | |
| H26711D-12-12SM | 1.1/6''*12 | 19 | 12 | 31.5 | 27 | 32 | |
| H26711D-16-12SM | 1.5/6''*12 | 19 | 12 | 31.5 | 32 | 41 | |
| H26711D-16-16SM | 1.5/6''*12 | 25 | 16 | 32.5 | 32 | 41 | |
| H26711D-20-20SM | 1.5/8''*12 | 32 | 20 | 37 | 41 | 50 | |
| Note: 1. For use with braid hoses. 2. if use with spiral hoses, hose fitting series no. is H26712D-XX-XXRW, H26712D-XX-XX SM | |||||||
Hydraulic Hose Fittings are widely used on hydraulic connection, power and control system of construction machinery, mining machinery,agriculture machinery, metallurgical equipment, wind power and etc.
