The hydraulic system serves as the heart and arteries of heavy equipment and industrial machinery.
Hydraulic pumps act as the heart of the system, providing positive displacement of hydraulic fluid. There are three primary types: gear pumps, piston pumps, and vane pumps. Each pump transfers measured amounts of pressurized fluid into the system, enabling smooth and efficient operation.
Hydraulic hoses and fittings form the system’s arteries, ensuring seamless fluid transfer. Without the correct hose, fitting, and connection, the system risks leaks, failures, or bursts. These components handle medium to high working pressures and must be properly controlled to prevent catastrophic equipment damage in the event of a system failure.

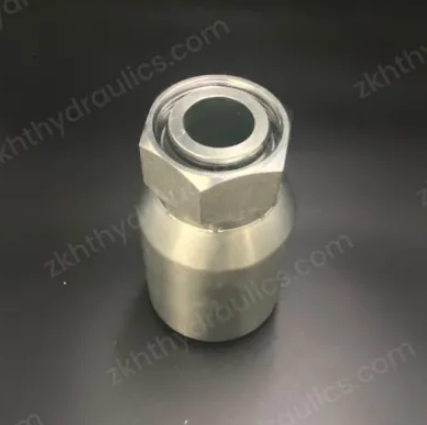

One-piece hose fittings come with a pre-crimped ferrule attached to the fitting. This design ensures that the collar remains properly aligned and that the correct ferrule is paired with the fitting. One-piece fittings are ideal for basic applications and allow for quick and straightforward assembly.
Two-piece hose fittings offer greater flexibility in hose selection and connection, accommodating 1SN, 2SN, and multi-spiral hoses. This design allows for multiple fitting and ferrule options tailored to specific applications.
For environments requiring corrosion resistance and extended service life—such as chemical and offshore industries—stainless steel 316 two-piece fittings are the preferred choice. These fittings often require material traceability provided by the manufacturer in critical applications.
Two-piece fittings excel in high-pressure applications, especially where extreme hose vibration or pressure surges occur. They create a robust connection between the fitting and hose, ensuring reliable performance under severe conditions.
In such high-pressure scenarios, the hose may be skived on both the inside and outside (dual skive) to achieve a secure metal-to-metal connection on both surfaces. This enhances the durability and integrity of the assembly, making it suitable for demanding environments.
Stainless steel two-piece hose fittings offer distributors a cost-effective inventory solution compared to one-piece fittings. By stocking only two primary types of hose tail styles—standard and interlock—inventory costs can be significantly reduced. This approach ensures flexibility while covering a wide range of hoses and applications:
- Standard Hose Tails: Suitable for applications involving textile hoses, one- and two-wire braided hoses, four-spiral hoses (4SP), thermoplastic hoses, and PTFE hoses.
- Interlock Hose Tails: Designed for use with higher-pressure multi-spiral hoses.
The cost of stainless ferrules is notably lower than that of their compatible hose tails. Maintaining a balanced inventory of hose tails paired with a larger variety of ferrules ensures distributors can meet diverse application needs while minimizing costs.
By prioritizing more ferrules over hose tails, distributors can reduce the overall cost of maintaining stainless steel components without compromising inventory availability or customer satisfaction. This strategy is particularly valuable for managing the expense of stainless steel materials.
Ensuring hydraulic fitting and hose compatibility is crucial, as the connection area endures the highest stress in the system. Issues like pinhole leaks or dangerous blow-offs under pressure can occur if the components are mismatched. Therefore, the fitting and hose must have compatible pressure ratings.
The system's working pressure is determined by the component with the lowest rated pressure. For example, pairing a 5,000 PSI spiral-wire hydraulic hose with a low-pressure brass fitting is a significant mismatch that could lead to catastrophic failure.
Selecting the appropriate hydraulic hose and compatible fitting is vital for safety and performance. In applications involving extreme conditions or corrosive environments, using 316 stainless steel fittings is essential to ensure reliability and longevity.
Special care is required when assembling hydraulic hoses. Two preparation methods are available: skiving and non-skiving.
Skiving involves using specialized equipment to remove a specific layer of material from the outer diameter (OD) and, in some cases, the inner diameter (ID) of the hose. Medium-pressure fittings often require only external skiving, while high-pressure applications may demand both internal and external skiving.
This process ensures a secure metal-to-metal connection between the fitting and the hose, providing enhanced reliability. Skiving allows the ferrule to grip the wire braiding of the hose, rather than just crimping onto the OD of the cover.
If the hose is not skived, the ferrule threads may bite into the rubber cover, potentially resulting in a less dependable connection. Proper crimping, based on the manufacturer’s specifications, is essential to complete the assembly. Manufacturers that offer crimp specs for multiple hose brands are advantageous, but if unavailable, installers must adjust and pressure-test the assembly to ensure safety and accuracy.
Non-skiving eliminates the material removal step, as the hose and fitting are designed to assemble directly. While this simplifies the process, the ferrule threads may still bite into the rubber cover, potentially affecting connection reliability.
Hydraulic fittings must balance flexibility for crimping with the strength to handle thousands of pounds of pressure and withstand millions of pressure cycles. Selecting the appropriate fitting material is critical to ensure optimal performance and durability in specific applications.
Stainless steel is the ideal choice for corrosive environments, marine applications, or situations involving high acid exposure. It is highly resistant to splitting or cracking and performs reliably under harsh conditions.
Brass fittings are also corrosion-resistant but are generally used in lower-pressure applications where temperatures do not exceed 400°F.
Carbon steel is widely used in agricultural, industrial, and construction applications. While it offers a cost advantage over stainless steel, it is less resistant to corrosion, making it less suitable for environments with high exposure to moisture or corrosive elements.
Aluminum fittings are chosen primarily for their lightweight properties but are less commonly used in hydraulic hose fittings. They are typically employed in applications where reducing overall system weight is a priority.
