Introduction:
HT Hydraulics Since 1987 Hydraulic ADAPTER

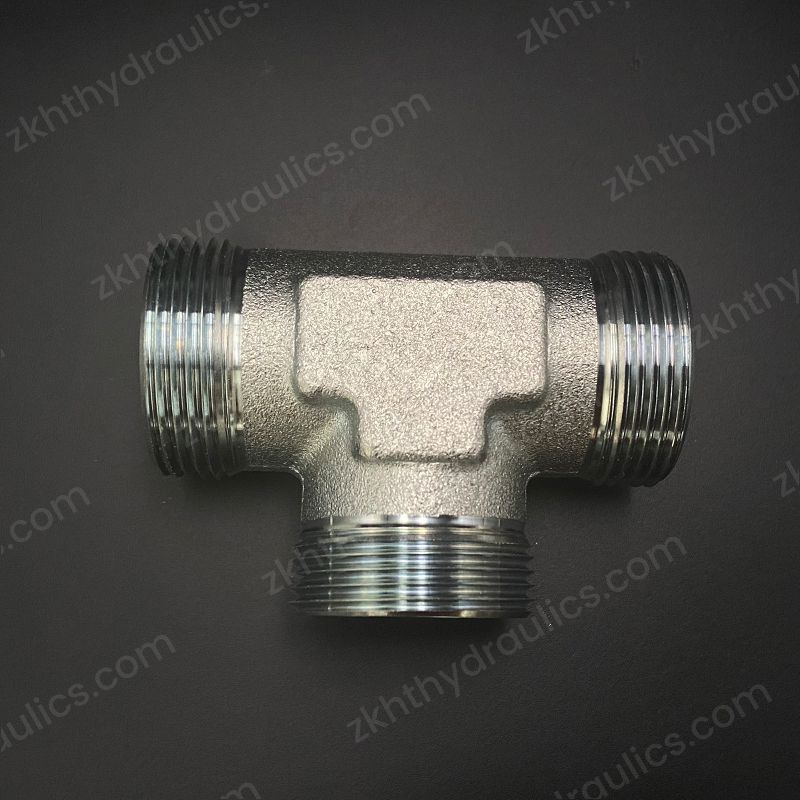

METRIC MALE 24° L.T. TEE（H.T. TEE）
PRODUCT INTRODUCTION
| AC | HT Hydraulics Since 1987 Hydraulic ADAPTER | ||||
| AD | METRIC MALE 24° L.T. TEE（H.T. TEE） | ||||
| Part No. | Thread | Tube O.D. | DIMENSIONS | |
| E | D1,D2,D3 | A | S1 | ||
| AC-12 | M12x1.5 | 6 | 23 | 11 | |
| AC-14 | M14x1.5 | 8 | 27 | 14 | |
| AC-16 | M16x1.5 | 10 | 29 | 17 | |
| AC-18 | M18x1.5 | 12 | 32 | 19 | |
| AC-22 | M22x1.5 | 15 | 33 | 22 | |
| AC-26 | M26x1.5 | 18 | 40 | 27 | |
| AC-30 | M30x2 | 22 | 40 | 27 | |
| AC-36 | M36x2 | 28 | 46 | 33 | |
| AD-14 | M14x1.5 | 6 | 27 | 14 | |
| AD-16 | M16x1.5 | 8 | 29 | 17 | |
| AD-18 | M18x1.5 | 10 | 32 | 19 | |
| AD-20 | M20x1.5 | 12 | 33 | 22 | |
| AD-22 | M22x1.5 | 14 | 33 | 22 | |
| AD-24 | M24x1.5 | 16 | 33 | 24 | |
| AD-30 | M30x2 | 20 | 40 | 27 | |
| AD-33 | M33x2 | 22 | 46 | 33 | |
| AD-42 | M42x2 | 30 | 57 | 44 | |
| Remark: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix"RN" arter our part NO., for example AD-22RN. (the same with above) | |||||
Hydraulic Hose Adapter are widely used on hydraulic connection, power and control system of construction machinery, mining machinery,agriculture machinery, metallurgical equipment, wind power and etc.
