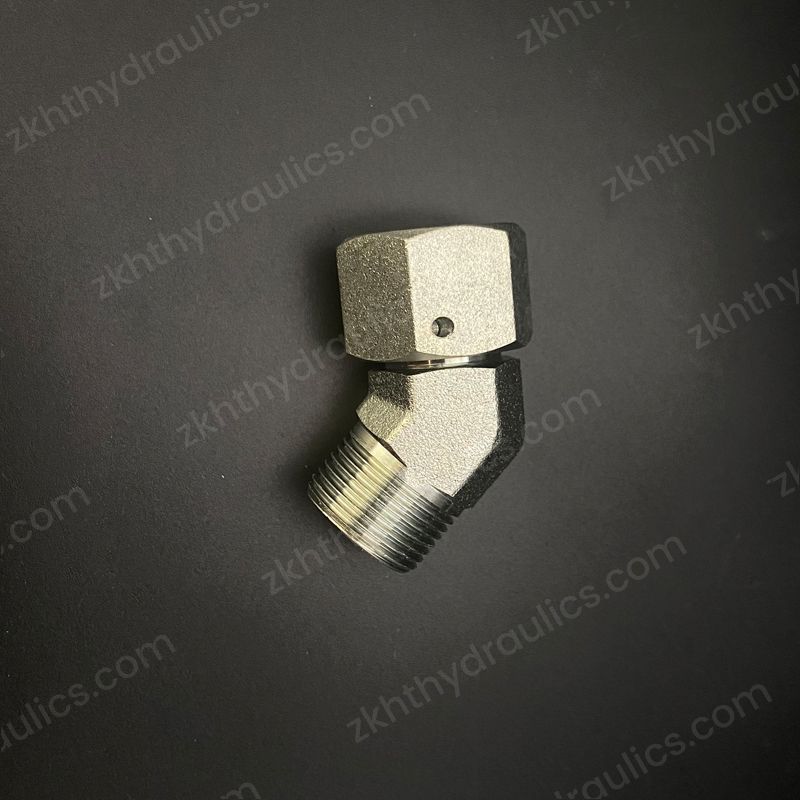

45 °Elbow Reducer Tube Adaptor With Swivel Nut

Inquire Now Next Product

PRODUCT INTRODUCTION

H2C4/2D4		HT Hydraulics Since 1987 Hydraulic Hose adapter
H2C4/2D4		45 °Elbow Reducer Tube Adaptor With Swivel Nut

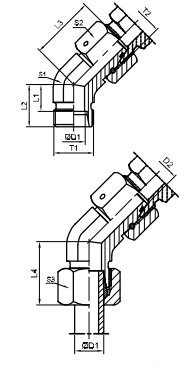

	Part No.	Thread		TUBE O.D		DIMENSIONS
	Part No.	T1	T2	D1	D2	L1	L2	L3	S1	S2/S3
	H2C4-12	M12*1.5	M12*1.5	6	9	16	26	24	14	14
	H2C4-14	M14*1.5	M14*1.5	8	12	19	27.5	27	14	17
	H2C4-16	M16*1.5	M16*1.5	10	12	19	29	27	19	19
	H2C4-18	M18*1.5	M18*1.5	12	14	21	29.5	29	19	22
	H2C4-22	M22*1.5	M22*1.5	15	17	24	32.5	32	22	27
	H2C4-26	M26*1.5	M26*1.5	18	16.5	24	35.5	33	27	32
	H2C4-30	M30*2	M30*2	22	18.5	26	38.5	35	30	36
	H2C4-36	M36*2	M36*2	28	23	30.5	41.5	40	36	41
	H2C4-45	M45*2	M45*2	35	26.5	37	51	48	50	50
	H2C4-52	M52*2	M52*2	42	26	37	56	49	50	60
	H2D4-14	M14*1.5	M14*1.5	6	9	16	27	24	14	17
	H2D4-16	M16*1.5	M16*1.5	8	12	19	27.5	27	19	19
	H2D4-18	M18*1.5	M18*1.5	10	13.5	21	30	30	19	22
	H2D4-20	M20*1.5	M20*1.5	12	16.5	24	31	33	22	24
	H2D4-24	M24*1.5	M24*1.5	16	15.5	24	36.5	34	27	30
	H2D4-30	M30*2	M30*2	20	16	26.5	44.5	38	30	36
	H2D4-36	M36*2	M36*2	25	18.5	30.5	50	43	36	46
	H2D4-42	M42*2	M42*2	30	23.5	37	55	50	50	50
	H2D4-52	M52*2	M52*2	38	21	37	63	52	50	60
	Note: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix "RN" after our part No. for example H2C4-30/RN
