Introduction:
HT Hydraulics Since 1987 Hydraulic Adapters

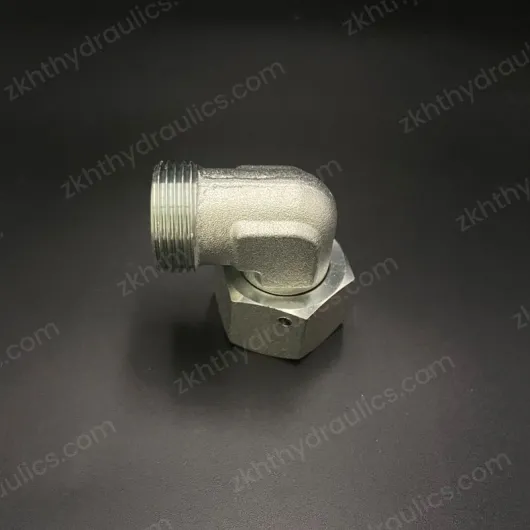

90°METRIC FEMALE 24°/METRIC MALE 24°L.T.
PRODUCT INTRODUCTION
| 2C9 | HT Hydraulics Since 1987 Hydraulic Adapters | |||||||
| 90°METRIC FEMALE 24°/METRIC MALE 24°L.T. | ||||||||
 | Part No. | Thread | TUBE.O.D | DIMENSIONS | ||||
| E | F | D1 | A | C | S1 | S2 | ||
| 2C9-12 | M12x1.5 | M12x1.5 | 6 | 25 | 2 | 11 | 17 | |
| 2C9-14 | M14x1.5 | M14x1.5 | 8 | 29 | 3.5 | 14 | 19 | |
| 2C9-16 | M16x1.5 | M16x1.5 | 10 | 30 | 3.5 | 17 | 22 | |
| 2C9-18 | M18x1.5 | M18x1.5 | 12 | 33 | 3.5 | 19 | 24 | |
| 2C9-22 | M22x1.5 | M22x1.5 | 15 | 37 | 3 | 22 | 27 | |
| 2C9-26 | M26x1.5 | M26x1.5 | 18 | 41 | 3.5 | 27 | 32 | |
| 2C9-30 | M30x2 | M30x2 | 22 | 41 | 4.5 | 27 | 36 | |
| 2C9-36 | M36x2 | M36x2 | 28 | 46 | 4.5 | 33 | 41 | |
| 2C9-45 | M45x2 | M45x2 | 35 | 55 | 5.5 | 44 | 55 | |
| 2C9-52 | M52x2 | M52x2 | 42 | 59 | 6.5 | 55 | 60 | |
Hydraulic Hose Adapter are widely used on hydraulic connection, power and control system of construction machinery, mining machinery,agriculture machinery, metallurgical equipment, wind power and etc.
